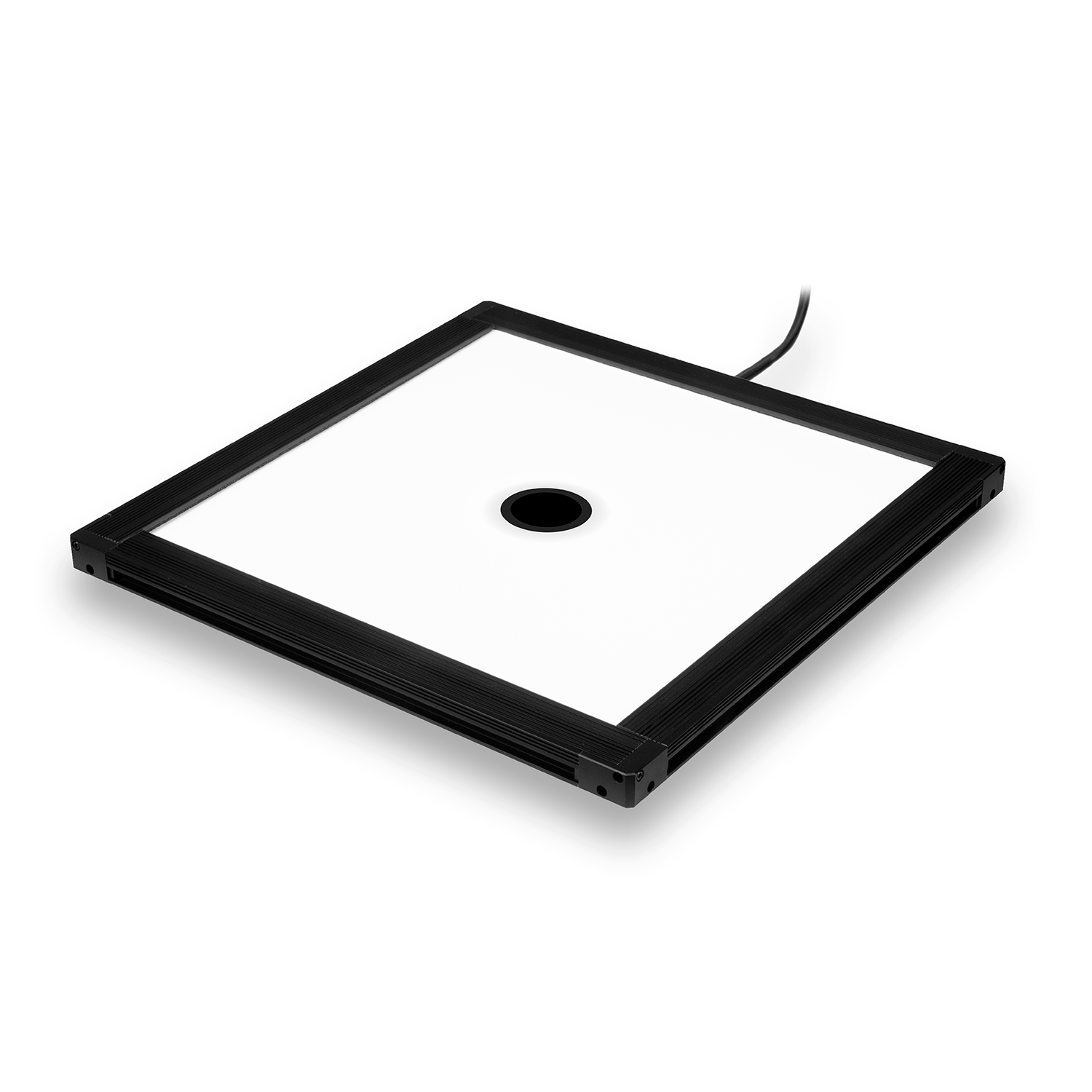

The FX2 is the edge-lit flat diffuse light built for reflective surface inspection.
Unlike back-lit diffuse designs, the FX2 positions its LEDs in the frame rather than behind the emitting window. This side-lit geometry allows for a thin housing and a scalable planar design with uniform output at longer working distances.
The FX2 is available in sizes from 50 mm x 50 mm up to 600 mm x 600 mm in 25 mm increments. It is offered in 11 wavelengths, with optional polarization to help reduce glare on reflective surfaces, and can be specified with a central viewport for select front lighting applications.
