Wide Linear Diffuse Lights

DL067 Series

The DL067 large area tunnel light is deisgned for use in specular reflective area scan camera applications requiring indirect diffused light, especially curved surfaces.

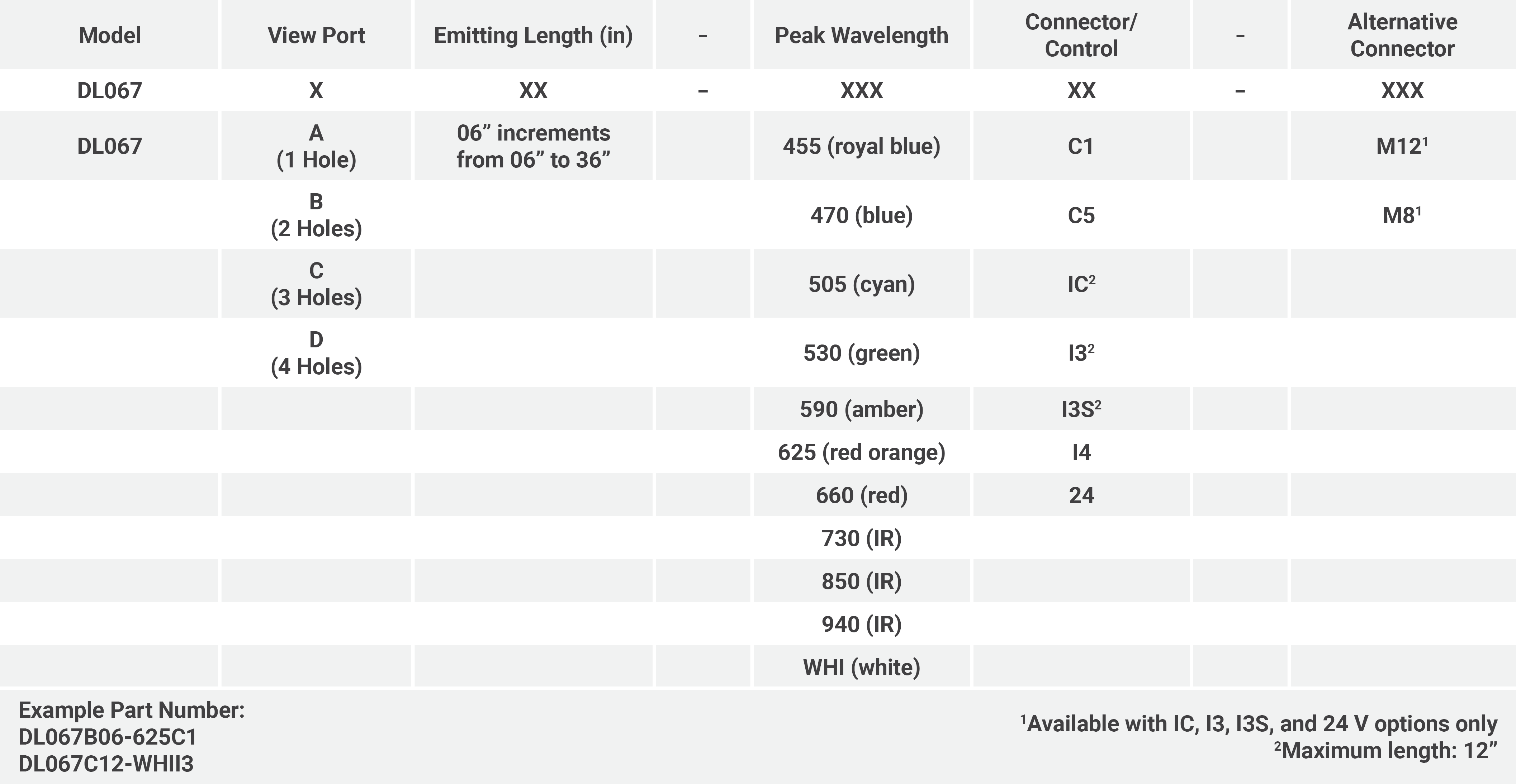

The DL067 is part of the Advanced illumination’s Expandable Series of lights that is available in multiple lengths from 6” to 36” long, where 12” x 12” emitting area size is standard.

A 1.5” dia, centered camera view port is standard and 2, 3 and 4 port models are available as BTOs. Customer specified port diameters (including elongated ports), and locations are available as custom variations.

Change Notice

PCN No: 142

Date Issued: 7/11/17

Notice Type: Product Revision Change

Product Type: DL067

Change Notification Summary

In an effort to improve our products, Advanced illumination (Ai) will update the LEDs used in the DL067 design. This change will result in a brighter, more uniform light at the same price*.

Customers may still buy the current revision of this model until October 13th, 2017. After that time, orders for these products will be converted to their respective DL067 Revison A models.

This LED change will result in additional wavelengths being available: 455nm, 505nm, 660nm, 730nm, and 940nm. *Visable and IR wavelengths that did not exist will prior will be sold at the same list price as similar wavelengths.

Orders for customized (dash numbers) versions of DL067 will be honored until January 12th, 2018. Ai will be actively working with customers for those products to simplify the transition.

Please contact your Ai Sales Representative if you have any questions.

PCN 142 DL067
