Small Dome Light

DL194

Utilizing high power LEDs, the DL194 is engineered to provide class-leading intensity for small to medium sized target area coverage.

As is typical for all hemispherical dome lights, the DL194 is best suited for inspection on curved surfaces where even illumination is necessary to avoid hot-spot reflections.

The DL194 is available in wide range of visible and NIR wavelengths, including an RGB option that is designed to operate with Advanced illumination’s multi-channel current source controllers.

Change Notice

PCN No: 131

Date Issued: June 24, 2016

Notice Type: Product Revision Change

Product Type: DL194

Change Notification Summary

In an effort to improve our products, Advanced illumination (Ai) will update the LEDs used in the DL194 design. This change will result in a brighter, more uniform light at the same price. Customers may still buy the current revision of this model until September 23rd of 2016. After that time, orders for these products will be converted to their respective DL194 Revison A models.

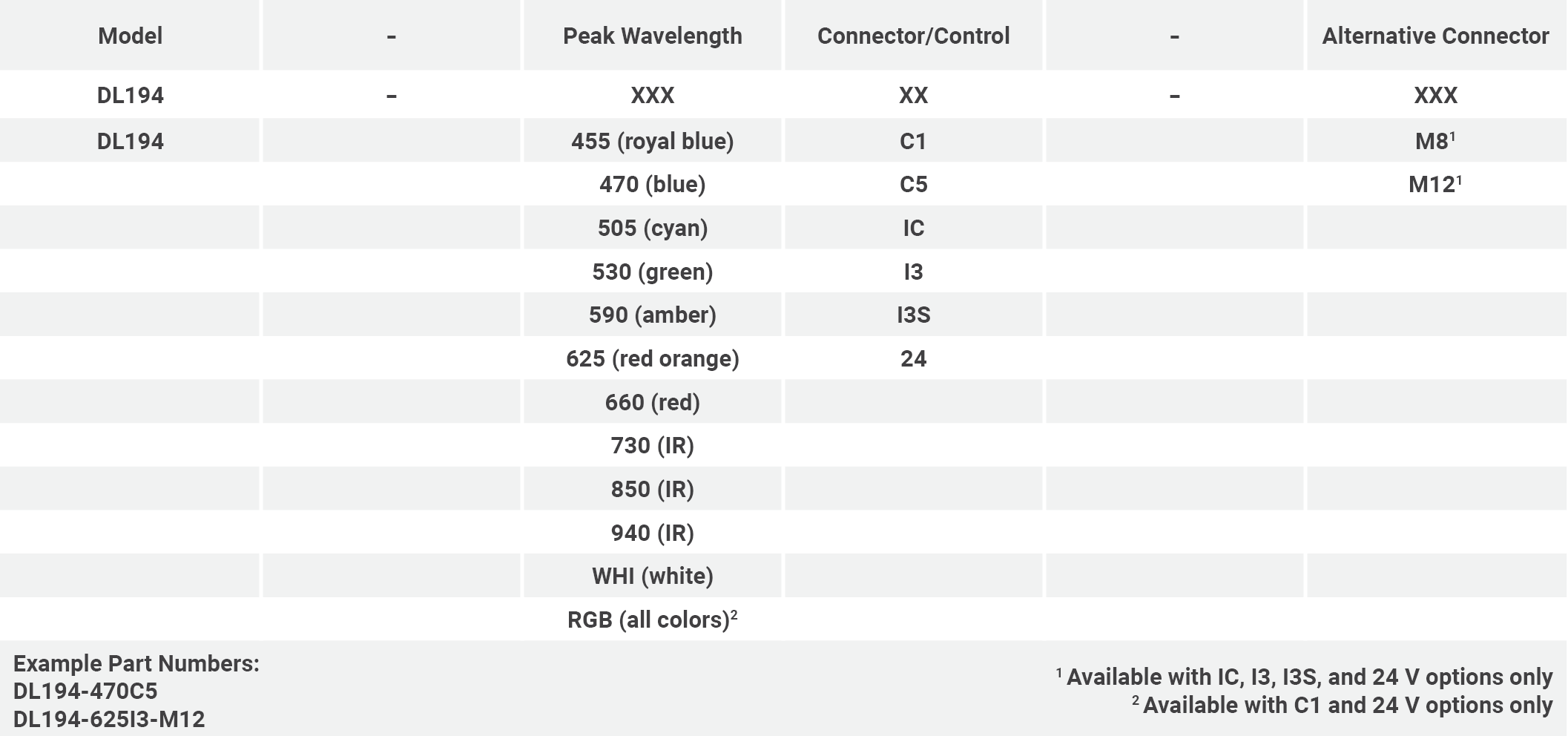

This LED change will result in additional wavelengths being available: 455nm, 505nm, 590nm, 660nm, 730nm and 940nm.

Additionally the white LED color temperture will be changing from 6100K to 5500K. Orders for customized (dash numbers) versions of DL194 will be honored until March 17th of 2017. Ai will be actively working with customers for those products to simplify the transition.

Please contact your Ai Sales Representative if you have any questions.

PCN 131 DL194
