Small Low Angle Dark Field

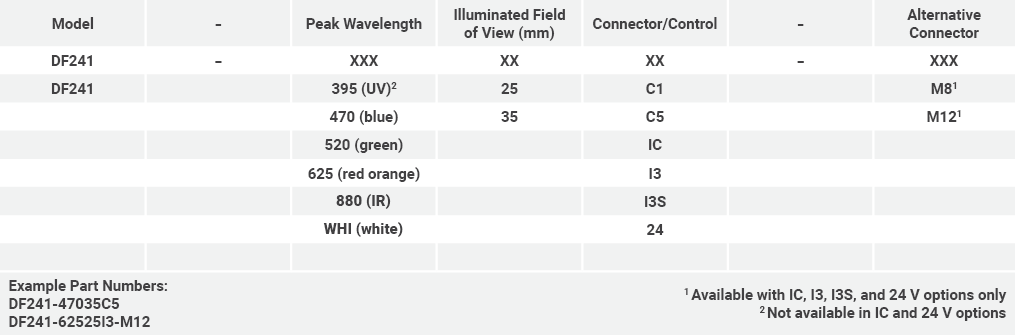

DF241

The DF241 very low angle Dark Field ring light was designed for the most demanding surface inspection applications.

It is best suited for use on flat, specular reflective surfaces that require the lowest angle of incidence to contrast minor surface defects, such as scratches or pits. To achieve the proper light geometry, this light head must be positioned no more than 25 mm from the surface for optimal results.

The DF241 ring light differs from the DF196 Dark Field light in that the LEDs are physically focused to a point in space, rather than utilizing a focusing lens. The precision LED aiming produce a thin, yet very uniform slice of light whose footprint on target is quite small compared to the light head diameter.

Change Notice

PCN No: 166

Date Issued: May 5, 2023
Notice Type: Product Change
Product Type: 660nm Wavelength on traditional 5mm Lights Discontinuation

Change Notification Summary

Advanced illumination (Ai) will be ending the manufacture of the 660nm color option on our classic aimed lights due to the LEDs being discontinued from the manufacturer. We expect to have six months of inventory to fulfill orders, after that we suggest purchasing the same light but with the 625nm wavelength.

Please contact your Ai Sales Representative if you have any questions.

PCN 166
