MicroBrite™ expandable bar lights deliver high performance in a compact form factor.
Available in a broad range of wavelengths with expandable sizes in 3” (75mm) increments up to 18” (450mm).
MicroBrite™ Bar Lights
AL295 Series
Part of the MicroBrite™ family of high performance, compact machine vision lights.
This bar light outperforms the competition with high intensity output of 73 kLux at a working distance of 100mm.
Available in a broad range of wavelengths with expandable sizes in 3” (75mm) increments up to 18” (450mm).
PCN No: 144
Date Issued: February 22, 2018
Notice Type: Product Change
Type: Washdown Lights
Change Notification Summary
Advanced illumination (Ai) is improving the way we manufacture washdown lights which will change their outward appearance. We will be replacing the black cordstock with clear flowable silicon. This change will provide a more durable finish and will effect the following lights: AL116, AL126, AL143, AL179, AL295, BL128, QM116, QM126, LL174 and SL147.
Please contact your Ai Sales Representative if you have any questions.
Washdown Lights Flowable Silicon
PCN No: 125
Date Issued: June 3, 2016
Notice Type: Product Revision Change
Product Type: AL295
Change Notification Summary
In an effort to improve our products, Advanced illumination (Ai) will update the LEDs used in the AL295 design. This change will result in a brighter, more uniform light at the same price*. Customers may still buy the current revision of this model until September 2th of 2016. After that time, orders for these products will be converted to their respective AL295 Revison A models.
This LED change will result in additional wavelengths being available: 365nm, 375nm, 385nm, 395nm, 405nm, 470nm, 505nm, 590nm, 660nm, 730nm, and 940nm. Additionally the white LED color temperture will be changing from 6100K to 5500K.
*UV wavelengths (365nm, 375nm, 385nm, 395nm & 405nm) will be sold a higher list price, which will be released at the time of product introduction.
Orders for customized (dash numbers) versions of AL295 will be honored until January 13th of 2017. Ai will be actively working with customers for those products to simplify the transition.
Please contact your Ai Sales Representative if you have any questions.

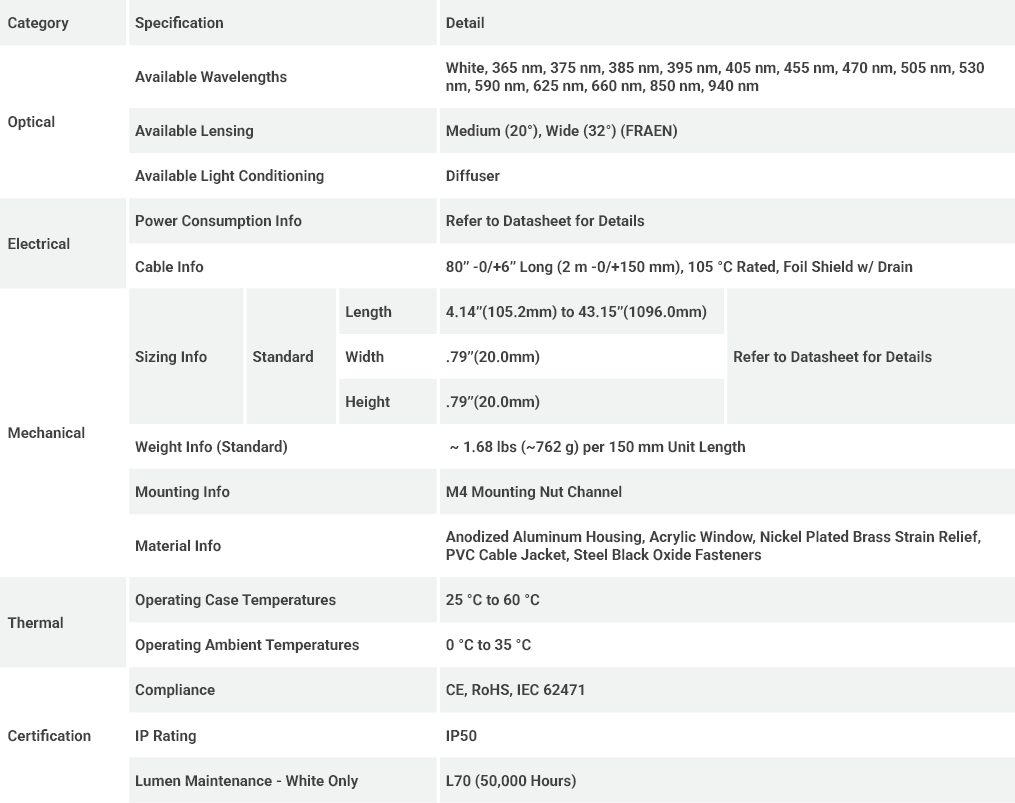

Electrical Specifications
Color
24V Current
All Other Controls
365, 375, 385, 395, 405
N/A
0.15A Max Per 75mm
455, 470, 505, 530, 590, WHI
N/A
0.23A Max Per 75mm
625, 660, 730
N/A
0.34A Max Per 75mm
850, 940
N/A
0.27A Max Per 75mm
Normal Operating Temperature
0 - 60°C
Weight
Varies by size; see page 2
Standard Cable Information
2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor
Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 505, 530, 590, 625, 660, 730, WHI
Group 2 (Moderate-Risk) Applicable Wavelengths: 365, 375, 385, 395, 405, 455, 470
Group 1 (Low-Risk) Applicable Wavelengths: 505, 530, 590, 625, 660, 730, WHI
Group 2 (Moderate-Risk) Applicable Wavelengths: 365, 375, 385, 395, 405, 455, 470
Compliance
CE, RoHS, IEC 62471
IP Rating
IP50
Lumen Maintenance
L70 = 50,000 Hours

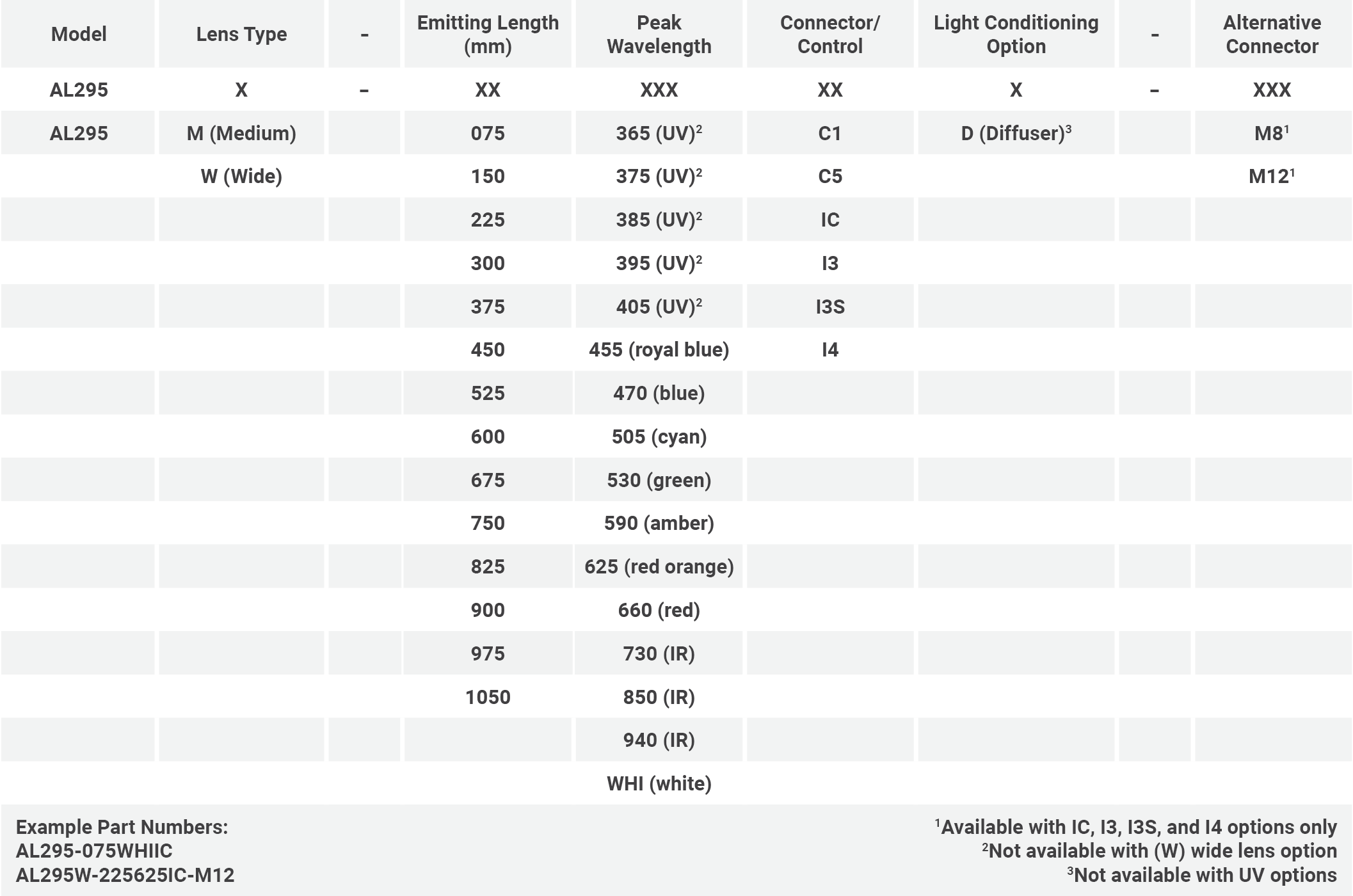

Light Configurator
